Hot Tub Spa Complete Control Pack from Mr Tubby Ltd
(PLEASE NOTE: This pack replaces the now obsolete original version as the manufacturers can no longer get the radio board that sits on top of the processor board. This is a new 2019 KL8-3 pack without the radio).
This Chinese control pack can be used for direct replacement or upgrade of virtually any Chinese manufactured hot tub (JNJ, Jazzi, Monalisa, Deluxe, Pengfeida) . These packs are imported and sold through companies like Spa Serve, DanZ, Tubs2U Americano, Direct Hot Tubs being a few of them.

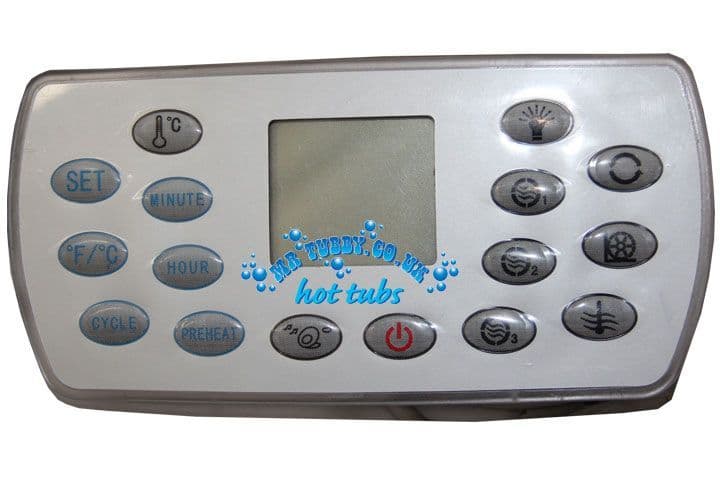

Dimensions for the topside panel:
Hole required in shell - 188mm x 84mm
Overall topside size - 210mm x 102mm
Functionality includes:
Pump 11
Pump 12
Pump 2
Pump 3
Pump 3L
Blower
Heater
TV/DVD
Light - a/c and dc connections available
Ozone
CD input
Comes as a complete pack therefore includes the main control unit, the spa side operator panel plus surround and a water temperature sensor.
We have fitted many of these packs to all sorts of spas so please call if you need any advice.
230V VOLTS
50HZ
PLEASE NOTE - on the low voltage side, for example, radio, lights, cd, then the packs can vary slightly according to the original build specification of the tub manufacturer. An electrician or hot tub engineer should be able to modify to suit.
